product parameters
| Products name | ti clad copper |
| Material | Cladding: Pure Titanium Gr1/Gr2 (ASTM B265); Core: Copper T2/TU1/C11000/C10200 (≥99.9% purity) |
| Manufacturing Process | Explosion Welding + Rolling (Metallurgical Bonding, No Delamination) |
| Standard | ASTM B898, ASTM B432 |

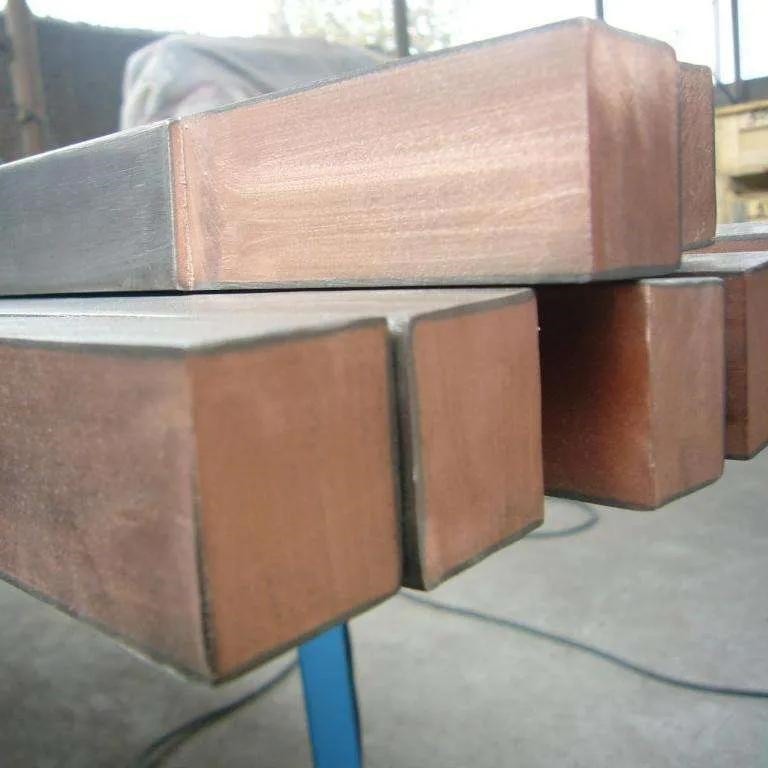

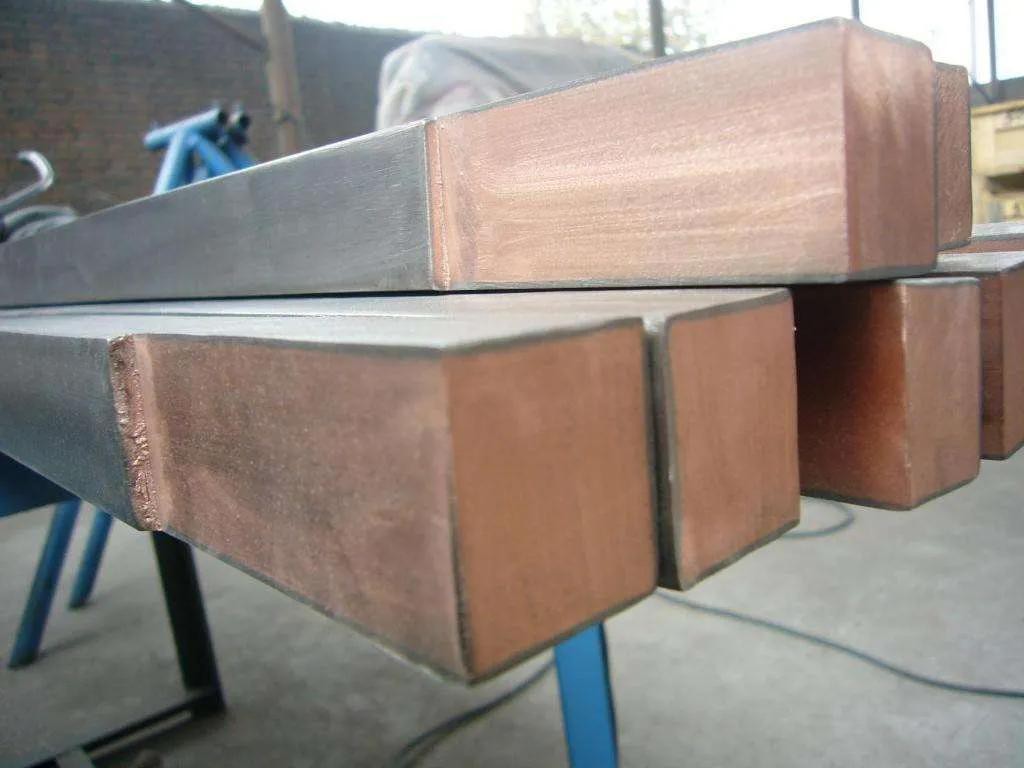

| Shape | Bar/Rod, Plate/Sheet, Tube/Pipe, Custom Profile |
| Round Bar | Φ8–Φ80 Titanium Thickness (mm)：0.5–3.0 |
| Square Bar | 10×10–60×60 Titanium Thickness (mm)：0.5–3.0 |
| Rectangular Bar | 20×6–120×30 Titanium Thickness (mm)：0.5–3.0 |
| Plate | Thickness 10–200, Width ≤2000, Length ≤4000 Titanium Thickness (mm)：2.0–20.0 |
| Electrical Conductivity | ≥85% IACS (Copper Core) |
| Thermal Conductivity | 180–220 W/m·K |
| Shear Strength | ≥140 MPa (Bond Interface) |
| Working Temperature | -50°C ~ 400°C |
| Surface Finish | Pickled, Brushed, Polished, Machined |
| Tolerance | Thickness ±10%, Length ±1mm/m |
| Certification | ISO9001 |
| Inspection | Ultrasonic Testing (UT), Visual Inspection, Shear Test |
| Package | Wooden Case, Moisture-proof, Anti-rust |
| MOQ | 10kg |
| Delivery Time | 7–15 Days |
Products Description
1. Product Overview
Ti Clad Copper is a high-performance bimetallic composite material manufactured by explosion welding + rolling process, which perfectly combines the excellent electrical/thermal conductivity of copper core and superior corrosion resistance & mechanical strength of titanium cladding. The metallurgical bonding at the interface ensures no delamination, high bond strength, and long-term reliability even in harsh corrosive environments.
2. Key Features
✅ High Conductivity: Copper core (T2/TU1/C11000) provides ≥85% IACS conductivity, ideal for high-current applications.
✅ Excellent Corrosion Resistance: Pure titanium cladding (Gr1/Gr2) resists acid, alkali, salt, and most corrosive media, extending service life significantly.
✅ Strong Metallurgical Bond: Explosion + rolling process creates molecular-level bonding, no peeling or separation under machining, bending, or welding.
✅ Cost-Effective: Replaces solid titanium with copper core, reducing cost by 30–50% while maintaining titanium's corrosion resistance.
✅ Customizable: Various shapes (bar, plate, tube) and sizes available, tailored to your drawings.
3. Manufacturing Process
✅Material Preparation: Select high-purity copper core (T2/TU1) and pure titanium sheet (Gr1/Gr2).
✅Explosion Welding: High-energy explosion bonds titanium and copper into a single bimetal plate.
✅Hot Rolling: Roll the bonded plate to target thickness, enhancing bond strength and mechanical properties.
✅Heat Treatment: Annealing to eliminate internal stress, improve ductility, and ensure dimensional stability.
✅Precision Machining: Cut, drill, or machine to the customer's required size and shape.
✅Quality Inspection: UT, visual check, shear test, and dimensional verification before packaging.
4. Application Fields

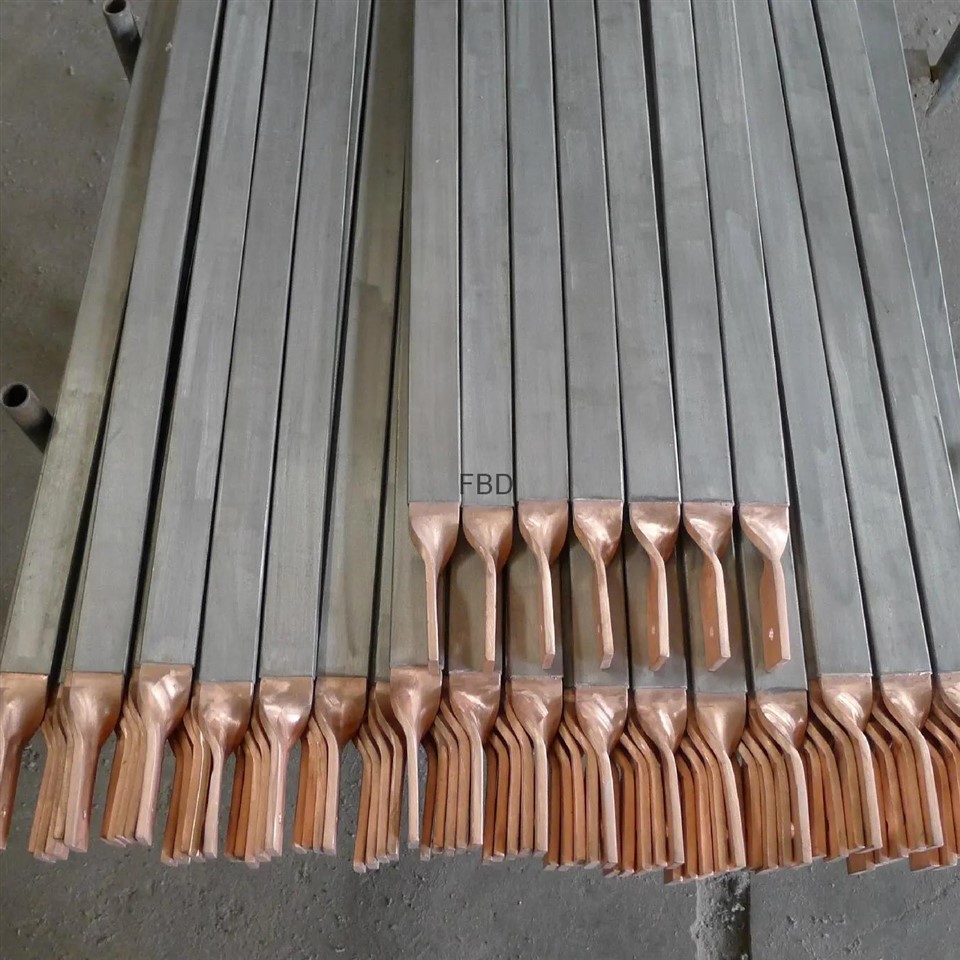

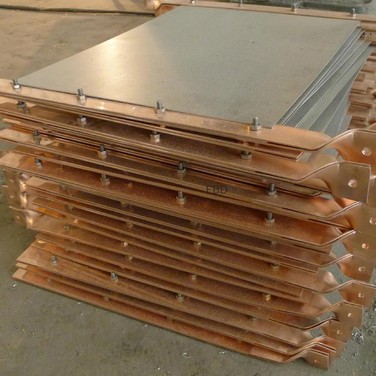

✅Electroplating Industry: Anode bars, anode plates for chrome plating, nickel plating, gold plating.
✅Hydrometallurgy: Electrolytic cells, cathode plates, conductive bars for copper, zinc, cobalt extraction.
✅PCB & Electronics: High-current conductive components, heat sinks, busbars.
✅Power & Energy: Grounding conductors, high-voltage busbars, corrosion-resistant conductive parts.
✅Petrochemical: Heat exchangers, reaction vessels, piping systems in corrosive media.
5. Quality Assurance
✅Raw Material Control: All titanium and copper materials are certified with ASTM/GB standards and traceable batch numbers.
✅Strict Production Standards: Follow GB/T 12769-2003, ASTM B898 for manufacturing and inspection.
✅Professional Testing: Each batch undergoes ultrasonic testing (UT) to ensure 100% bonding rate; shear strength ≥140 MPa.
✅Third-Party Inspection: Support SGS, BV, or other third-party inspection services as required.
6. Why Choose Us?
✅Factory Direct Supply: Professional titanium clad copper manufacturer with 10+ years of experience.
✅Customization Service: Provide OEM/ODM service, produce according to your drawings or samples.
✅Competitive Price: Stable supply chain and mass production ensure best price for high quality.
✅Fast Delivery: Standard products in stock; custom orders delivered in 7–15 days.
✅Professional Support: 24/7 online technical support, help you select the right material and size.
Contact Us
If you are interested in our ti clad copper bar/plate/tube or need custom specifications, please contact us directly. We will provide you with free samples, detailed quotation, and professional technical support!
